EIHF-Isofroid

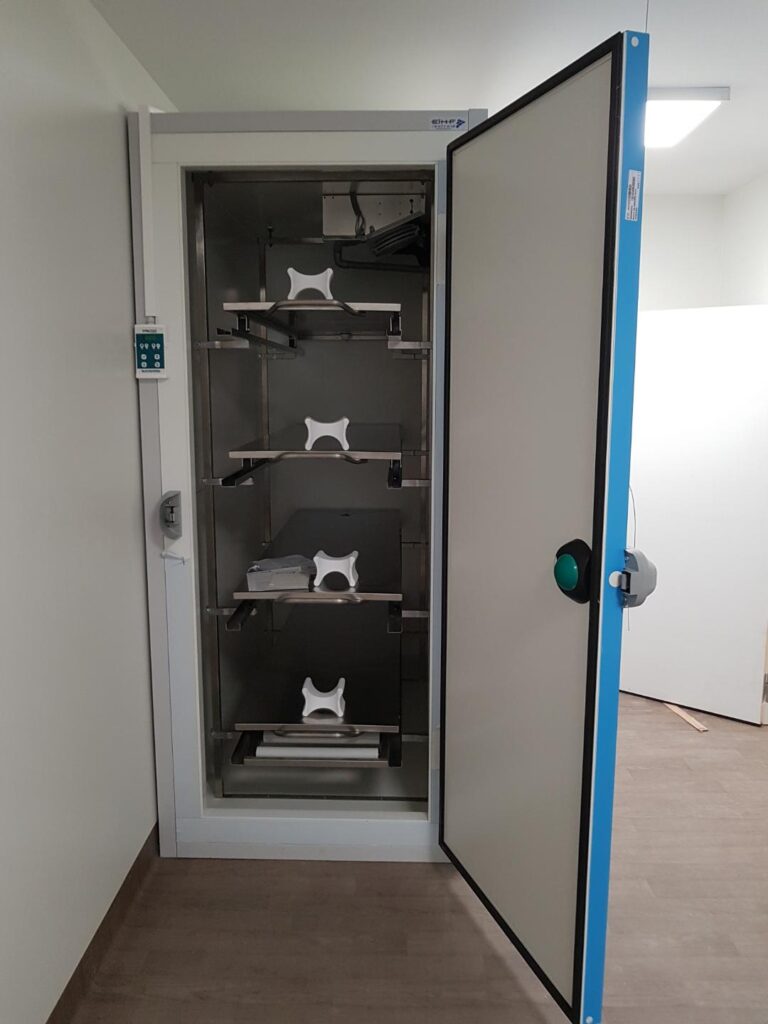

Positive cold temperature for preservation of bodies at +4°c: T° range -5°c to +10°c, 60 mm thick panels, free passage door (H x W) 220 x 80 cm with 180° opening to the left or to the right, All lacquered PET55µ front door finish.

Fitting: all stainless steel 304 interior with 4 stretchers (flat Ref. 1560 or curved Ref. 1561). Refrigeration unit: Monobloc, side-mounted. Dimensions (W x H x D) 112 x 252 x 218cm. Other possible finishes: 304 stainless steel front, all 304 stainless steel, Other Free passage: width 62 cm or 100 cm.Extendable to 5 bodies. Group variant: ceiling mounted or as a split system less than 15 metres away,

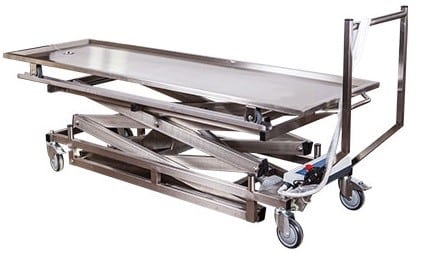

All stainless steel 304 brushed stainless steel finish. 24V waterproof (no to pressurized water jetting) battery with a great autonomy (about 100 cycles up/down) – A 230V cord allows its recharge (about 3 hours). A load capacity indicator – an emergency stop – a remote control. Optimized wheelbase: front – rear 145 cm and left – right 50cm – Very silent electromechanical jack – Rise and fall mini 32cm and maxi 182cm – A high and low limit switch – A locking safety on jack. 4 swivel wheels of Ф 12,5cm, 2 of which with brake – 2 rails for stretchers with wheels – Rails with end stop and a spring locking system allowing to lock the stretcher on the cart.
DIMENSIONS : Width 61 cm x Length 160 cm x Height 75 cm – Load capacity 220 Kg (at 50cm height) – Weight : 80 Kg .

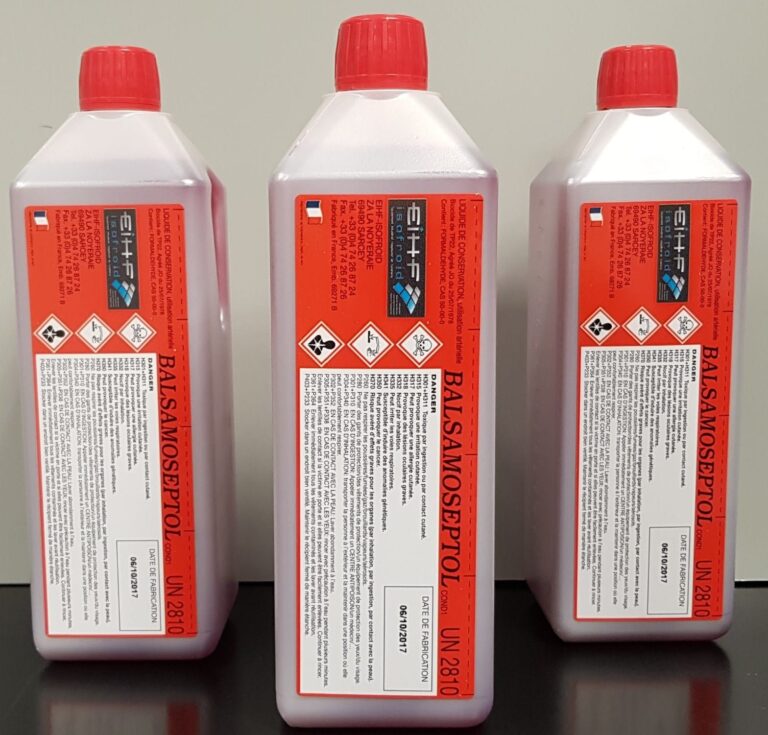

Arterial fluid of conservation Index 26, cardinal red color, perfumed with essential oils of citronella. This fluid can be used in all cases by varying its concentration. It is used at a dilution of 190 to 210 ml per 5 liter jar. BALSAMOSEPTOL is characterized by a “delayed” action. Indeed, the fixation obtained is slow and gradual. The aesthetic quality and the final result depend on a natural “volume setting” of the features and attitude of the deceased BEFORE proceeding with the infection. After treatment, the tissues are found to be harmoniously and evenly impregnated with the fluid and to retain their suppleness and coloring. Approved by the Ministry of Health according to decree N° 76-435 of 25/07/1978 (J.D.25107/1978)

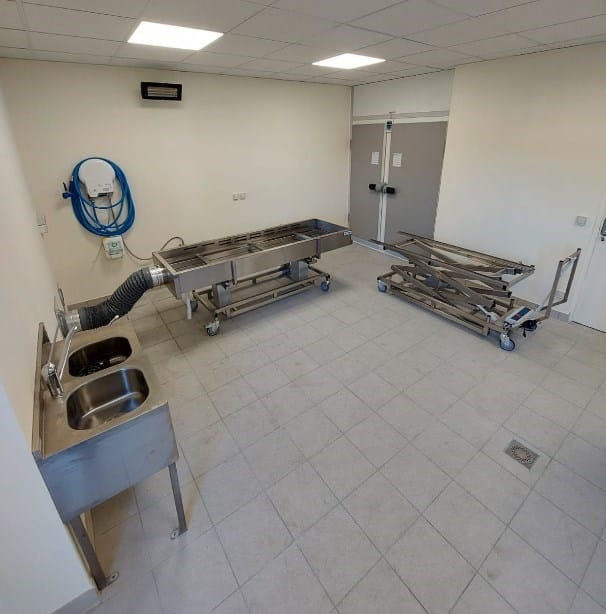

Cart specially adapted for body washing, conservation care, to avoid the operator to inhale the harmful odors and vapors from the body. With integration of the stretcher, adapted to the care of conservation, in conformity with the new regulation on the reduction of the limit of exposure to Formaldehyde.
Dimension : 2160 x 800 x height mini 730 mm – maxi 1030mm. Load capacity : 300 Kg

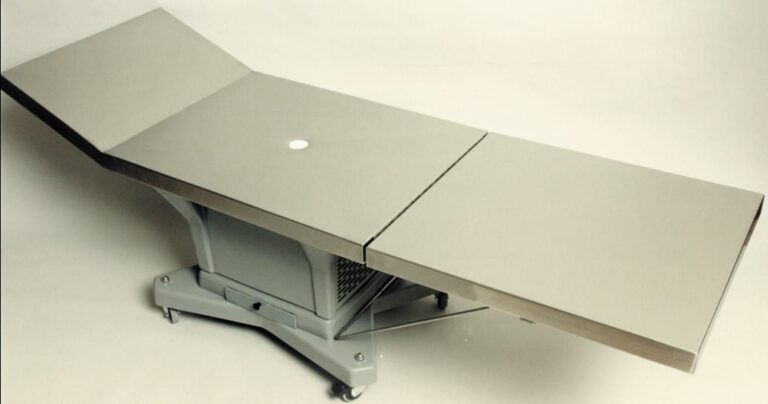

For the presentation of the body in the funeral or mortuary room, very quiet (sound level 42 dB). Table made of stainless steel 304 L 10/10° with ABS frame and 4 swivel wheels of Ф 75mm, 2 of which with brake, 22° raised head part and leg part folding by hinge and blocking for support on ABS base with the help of a removable stainless steel U.

Dimensions: width 62cm in standard, length of the table unfolded 190cm (folded 120cm), height of the apron 57cm and height of the head 70cm. Weight 46 Kg, load capacity 230 Kg.

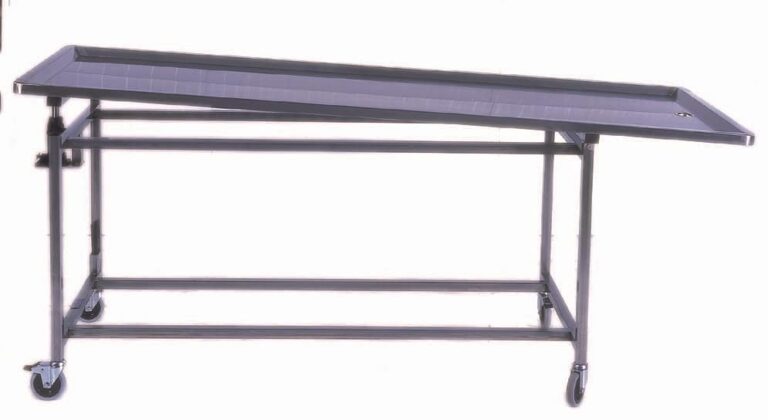

Made of 304 stainless steel, mounted on 30 x 30mm base with 4 wheels of Ф 10 cm, 2 of which have brakes (in order to block the table during handling). It is equipped with a manually operated hydraulic cylinder, allowing the raising and lowering of the whole structure supporting the rails and the stretcher. The inclination thus obtained facilitates the evacuation of the washing water from the stretcher drain to the drainage tank of the washing units. This table is suitable for washing the body in the mortuary laboratory or in the hospital examination room. Includes bung and plug.

Dimensions: width 75 cm x length 190 cm x height 85 cm (other heights on request) – Load capacity 250 Kg. Weight : 35 Kg.

Table made of stainless steel 316, with variable height 73 to 103 cm. 1 worktop of 20/10° thickness, smooth without holes, equipped with a permanent rinsing system adjustable in flow. The top is slightly inclined and allows the evacuation of liquids, and perforated on the periphery to facilitate the extraction of air thanks to its independent motor equipped with 2 filters. A foot of 72cm width and 142cm length gives it a great stability. Load capacity 300 Kg. Dimensions : L 290 x H 73 – 103 x W 80 cm (variant 90 cm)- 30cm stroke – Weight 220 Kg.

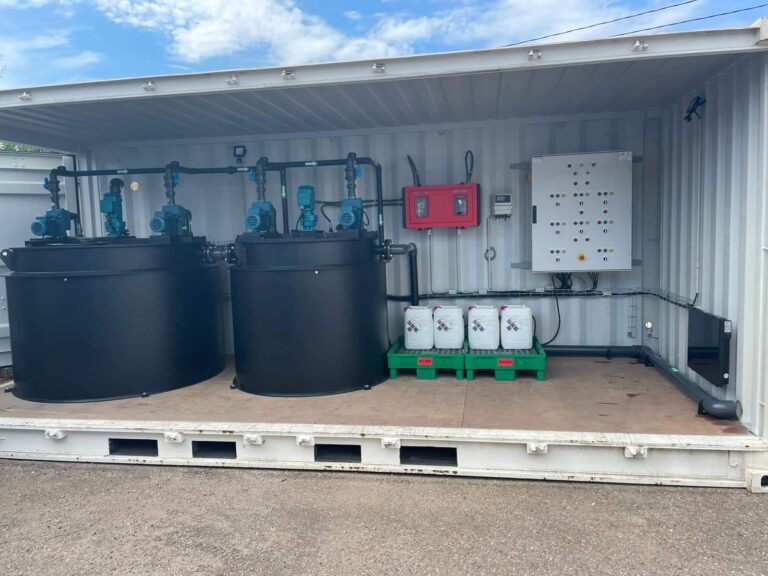

The project consists in supplying and installing a treatment unit to treat and neutralize the wastewater from the mortuary service. The process implemented will be chemical under the principle of the action of sodium hydroxide NaOH. All the effluents from the autopsy room and, in principle, from all the points where the liquid discharges are likely to be contaminated, particularly by ATNC, must be treated. These discharges are loaded with organic matter. The inactivation of the ATNC in accordance with the directive of the DGS/DH N° 138 will be carried out in a treatment unit.

Included: 1) Storage and homogenization tank, 2) Treatment tank, 3) Neutralization unit and acid-base pH regulator, 4) Electrical control cabinet. Option : Plug and Play installed in a 20 feet container.

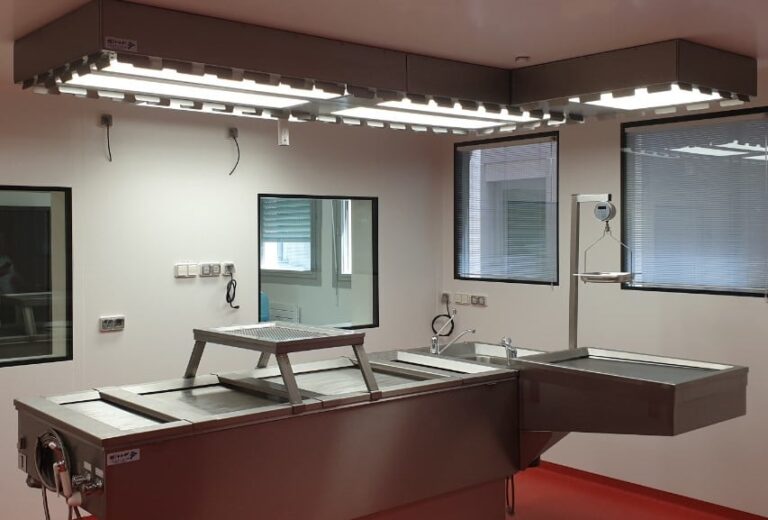

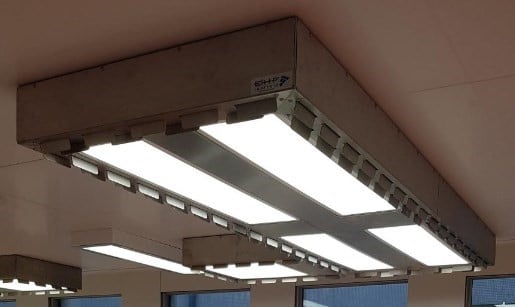

Made of stainless steel 304, thickness 15/10° brushed finish grain 220 equipped with LED lights, adjustable deflectors, 4 LED lights of T° 4000K and Power 40W each. Included : Blowing nozzles on 2 rows and arranged on 4 sides, the air flow coming out of the nozzles is adjustable according to an angle of +/- 15°, 72 nozzles of 125 x 12 spaced out by 50mm, 2 air intakes on diameter 196mm, 4 LED lights 230V of power 45w 4000K – IP40 and dimensions 1195 x 295mm and 4 angles of suspension to the ceiling (resumption with M8 threaded rods). The adjustable deflectors allow to direct the air flow falling on the autopsy table top. Dimensions: L 232 x H 25 x W 82 cm – Weight approximately 150 Kg.
